Final Model

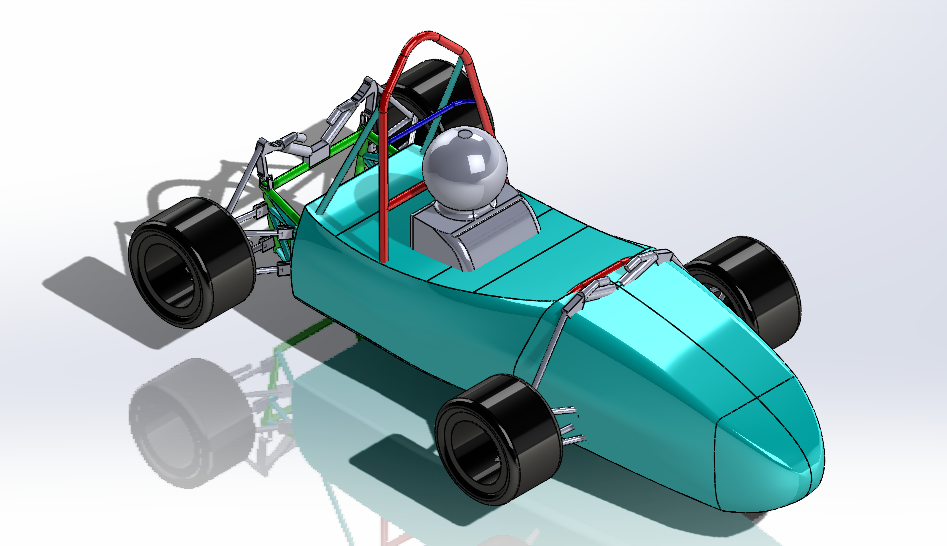

This was the final model that I imported for analysis into Ansys Fluent
Create a modified version of our FSAE car for analysis in Ansys Fluent
This was the final model that I imported for analysis into Ansys Fluent

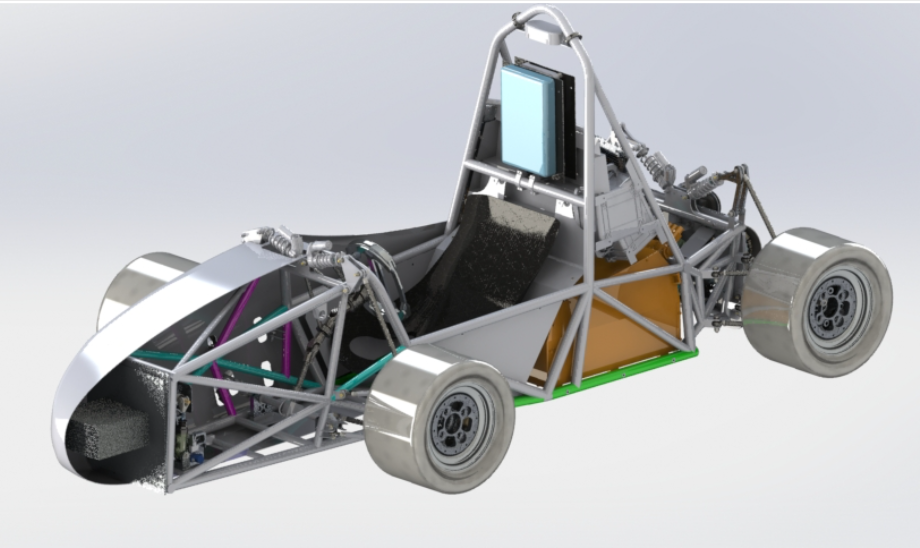

The full CAD is shown here. I had to make a lot of simplifications and modifications to existing parts. For example, the accumalator was replaced with a box, the dampers were made with cylinders, etc.

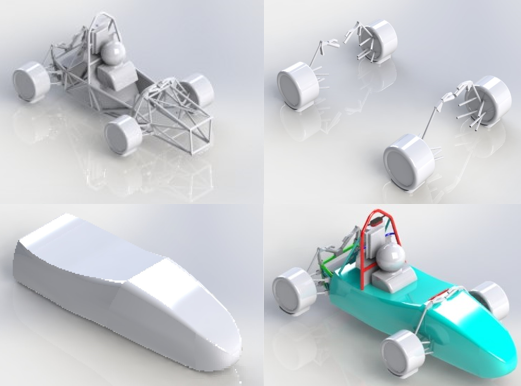

Here you can see the individual parts that I included in my modified assembly. The suspension, body, and chassis components are all shown and get combined into one solid body at the end
